STUFA A LEGNA CON FORNO

FUSION-X

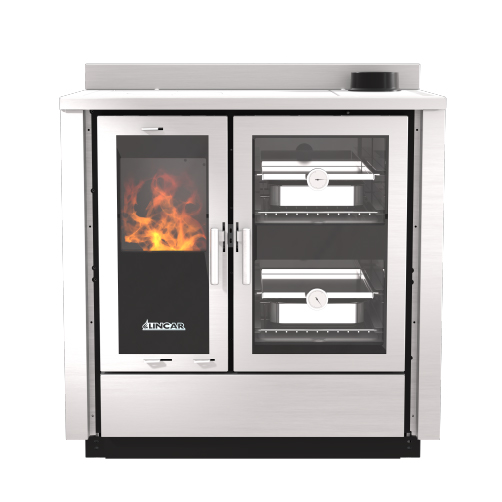

CUCINA A LEGNA CON DOPPIO FORNO | Wood Cooker

Nuova cucina a legna da grandi prestazioni, estetica moderna, struttura di grande qualità, grazie all’utilizzo di materiali di pregio, come l’acciaio satinato, porta focolare con doppio vetro, presenza di due forni indipendenti per la cottura degli alimenti, doppi vetri interni a protezione dei forni, scarico fumi direzionabile in tre posizioni: superiore, posteriore e lat. dx., cornice e piastra in acciaio di grande spessore, piedi regolabili, rivestimento totale in Acciaio Inox, predisposta all’incasso con possibilità di inserimento o di libera installazione.

New high-performance wood-burning cooker, modern aesthetics, high-quality structure thanks to the use of quality materials, such as brushed steel. Hearth door with double glazing, presence of two independent ovens for cooking food, internal double glazing to protect the ovens. Fumes outlet that can be directed to three positions: top, rear and right side. Frame and plate in thick steel, adjustable feet, total cladding in satin stainless steel.

    9,33 kW *

     89,5%

     Fire Mouth (LxH): 235×230 mm

     (LxPxH): 900x600x890 mm

    160 kg



 Inox



Detrazione fiscale 50% per ristrutturazione edilizia (BONUS CASA)

Descrizione


Volume riscaldato m3 (amb. ben isolati) | Room heating capacity by good house insulation
m3 221

Potenza Termica Focolare MIN- MAX. | Heat output
kW 9,33

Potenza Termica Utile MAX. (Pot. Nominale) | Nominal power output
kW 8,4

Potenza riscaldamento resa ambiente | Heating environment power
kW 8,4

Rendimento a: Potenza MIN | Potenza MAX. – Efficency
% 89,5

Imbocco Fuoco LxH | Fire mouth LxH
mm 235X230

Dimensione Focolare LxPxH | Hearth size LxWxH –
mm 300x410x350

Ventilatori Aria riscaldamento | Air heating fans
NO

Scarico Fumi | Smoke outlet
mm 130

Dimensione Forni LxPxH | Oven
mm 320x430x205

Volume Forno | Oven
l 35

Fiamma Visibile| Visible ame
SI

Dimensioni LxPxH | Dimensions LxWxH
LxPxH mm 900 x 600 x 890

Rivestimento | Cladding
Acciaio smaltato / painted steel

Peso | Weight
Kg 160

  • LIBRETTO TECNICO | Using instructions
  • CERTIFICATO AMBIENTALE | Environmental certificate
  • CERTIFICATO CE | CE certificate
  • DICHIARAZIONE DI CONFORMITÀ CONTO TERMICO | Declaration of conformity
  • ETICHETTA ENERGETICA | Energy Label
  • SCHEDA PRESTAZ. ENERGETICA
  • DICHIARAZIONE DI CONFORMITÀ (DOC) | Declaration of conformity
  • DICHIARAZIONE DI PRESTAZIONE (DOP) | Declaration of performance
