STUFA A LEGNA CON FORNO

FUSION

CUCINA A LEGNA CON DOPPIO FORNO | Wood Cooker

 FUSION è la nuova cucina a legna caratterizzata da un’altissima qualità dei materiali, con un design dalle linee pulite, semplici ed estremamente contemporanee. Tra i pregi strutturali: ampie porte in acciaio, due forni con diverse temperature di cottura, doppi vetri per una maggiore sicurezza di utilizzo. Alta efficienza, grandi performance e basse emissioni sono i suoi punti di forza. FUSION è certificata ariaPulita™ con 5 stelle e risponde in modo assolutamente performante alle richieste del “Conto Termico 2.0”.

FUSION is the new wood-burning kitchen characterized by very high quality materials, with a design with clean, simple and extremely contemporary lines. Among the structural advantages: large steel doors, two ovens with different cooking temperatures, double glazing for greater safety of use. High efficiency, great performance and low emissions are its strengths. FUSION is certified ariaPulita™ with 5 stars and responds in an absolutely performing way to the requests of the “Conto Termico 2.0”.

    9,33 kW *

     89,5%

     Fire Mouth (LxH): 235×230 mm

     (LxPxH): 980x670x850 mm

    140 kg

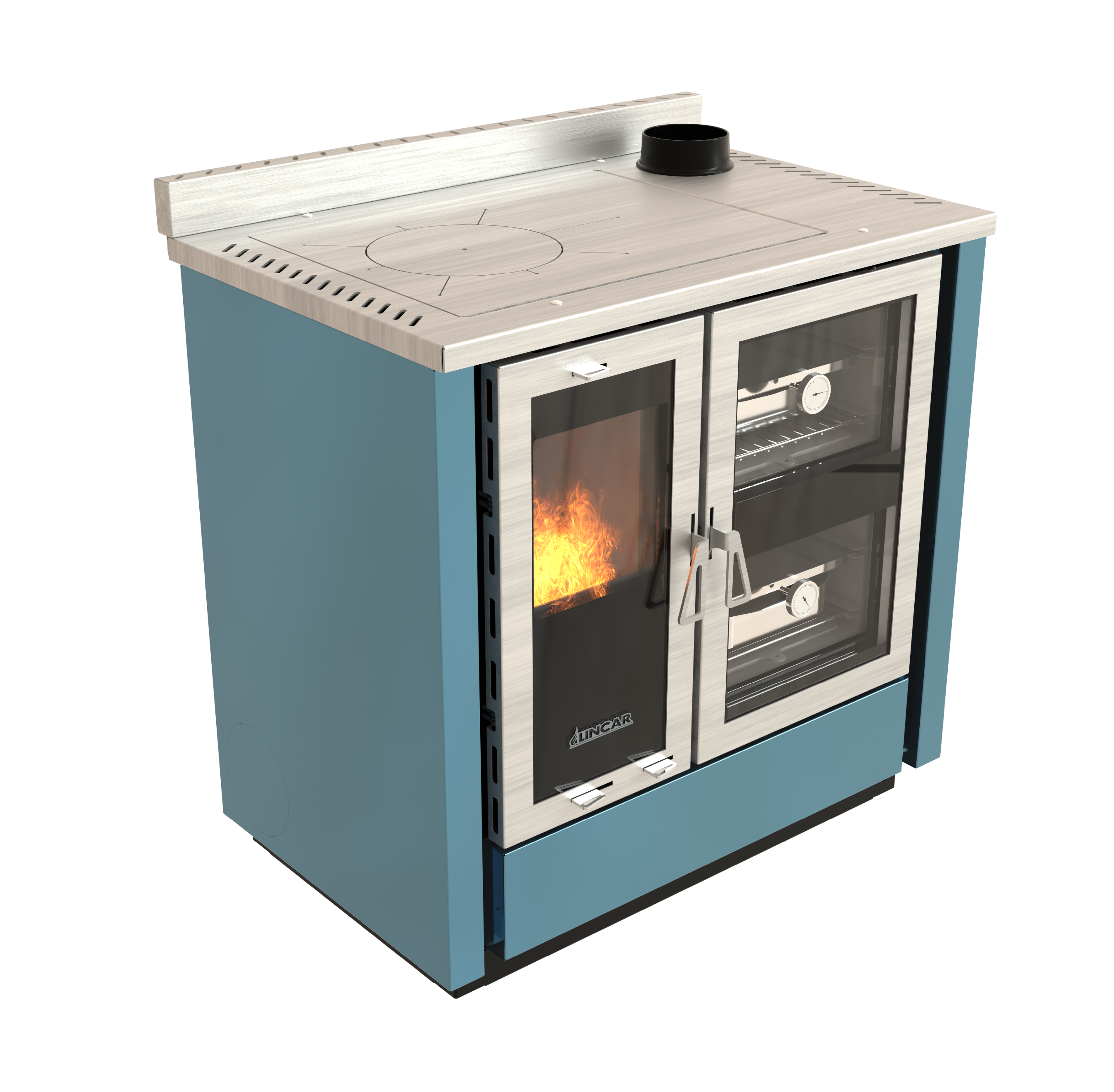

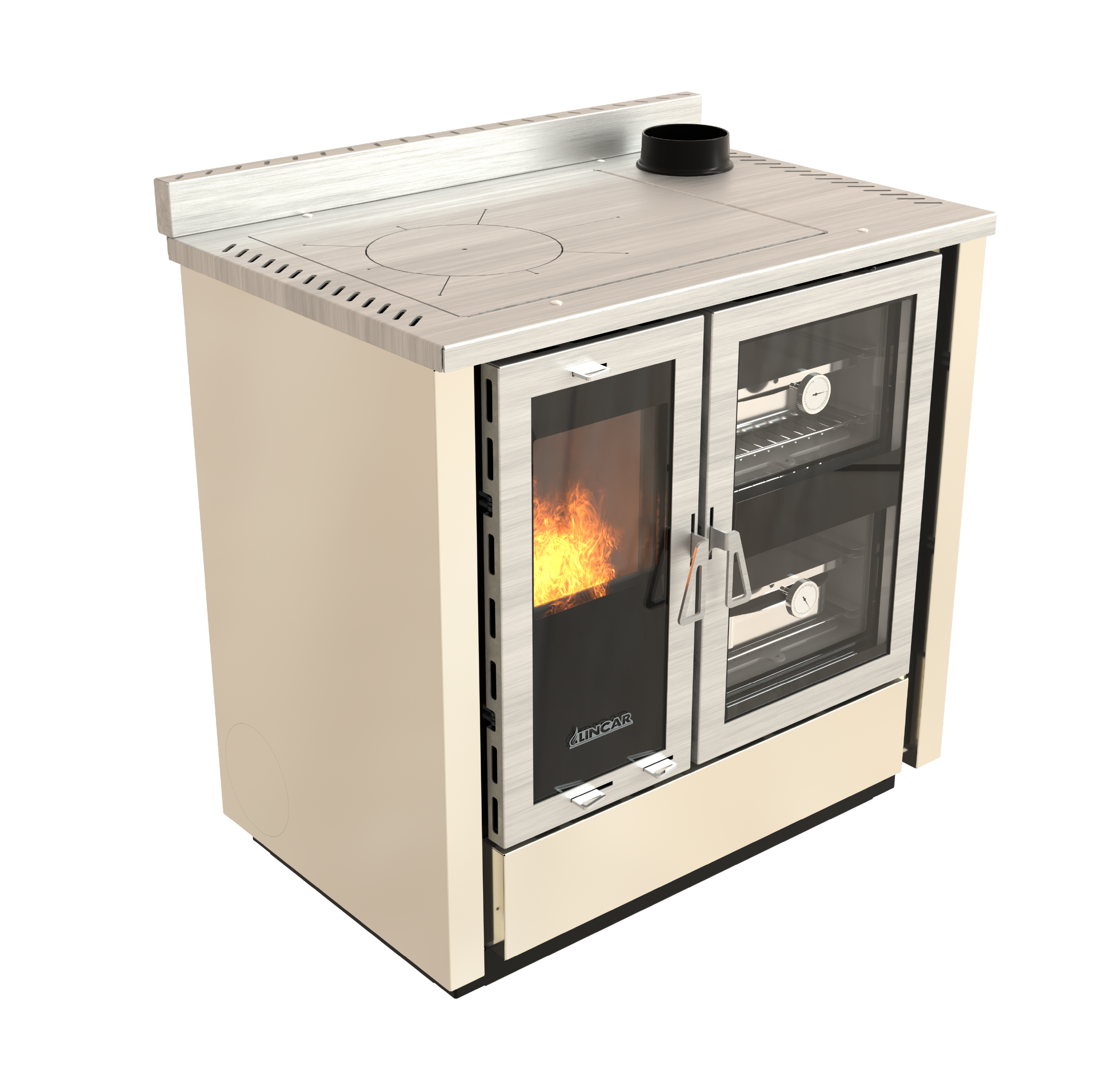

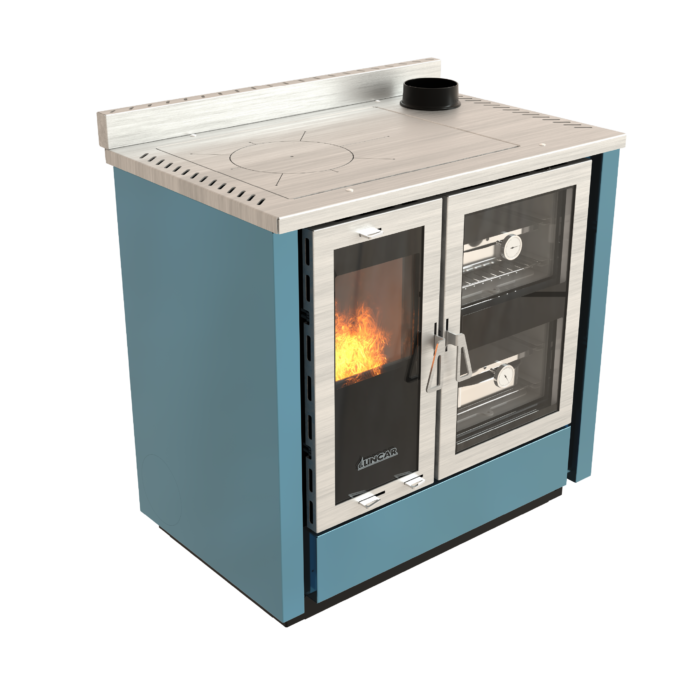

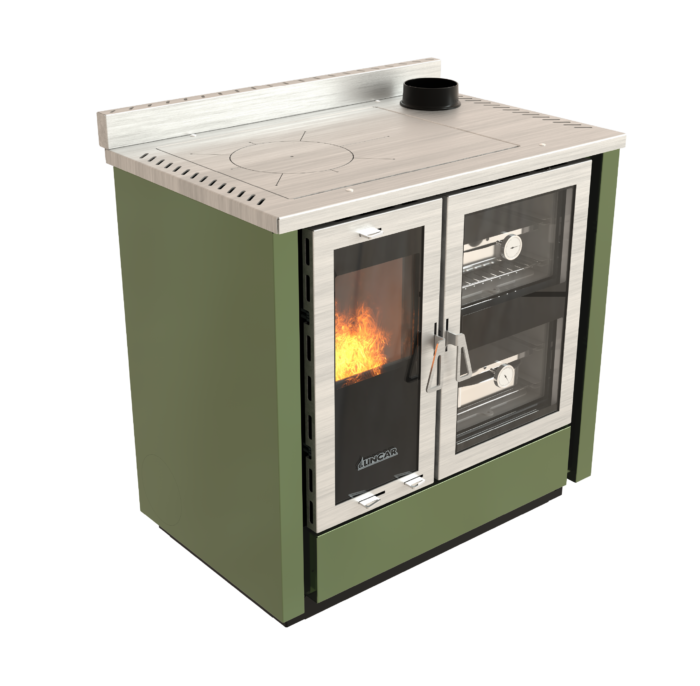

 Inox  Grigio/Grey Verde/Green Arancione/Orange Bianco/White Rosso/Red   Azzurro/Blue



Detrazione fiscale 50% per ristrutturazione edilizia (BONUS CASA)

Descrizione


Volume riscaldato m3 (amb. ben isolati) | Room heating capacity by good house insulation
m3 221

Potenza Termica Focolare MIN- MAX. | Heat output
kW 9,33

Potenza Termica Utile MAX. (Pot. Nominale) | Nominal power output
kW 8,4

Potenza riscaldamento resa ambiente | Heating environment power
kW 8,4

Rendimento a: Potenza MIN | Potenza MAX. – Efficency
% 89,5

Imbocco Fuoco LxH | Fire mouth LxH
mm 235X230

Dimensione Focolare LxPxH | Hearth size LxWxH –
mm 300X430X310

Ventilatori Aria riscaldamento | Air heating fans
NO

Scarico Fumi | Smoke outlet
mm 130

Dimensione Forno LxPxH | Oven
mm 300X430X300

Volume Forno | Oven
l 41

Fiamma Visibile| Visible ame
SI

Dimensioni LxPxH | Dimensions LxWxH
LxPxH mm 980 x 620 x 850

Rivestimento | Cladding
acciaio smaltato / painted steel

Peso | Weight
Kg 140

  • LIBRETTO TECNICO | Using instructions
  • CERTIFICATO AMBIENTALE | Environmental certificate
  • CERTIFICATO CE | CE certificate
  • DICHIARAZIONE DI CONFORMITÀ CONTO TERMICO | Declaration of conformity
  • ETICHETTA ENERGETICA | Energy Label
  • SCHEDA PRESTAZ. ENERGETICA
  • DICHIARAZIONE DI CONFORMITÀ (DOC) | Declaration of conformity
  • DICHIARAZIONE DI PRESTAZIONE (DOP) | Declaration of performance
