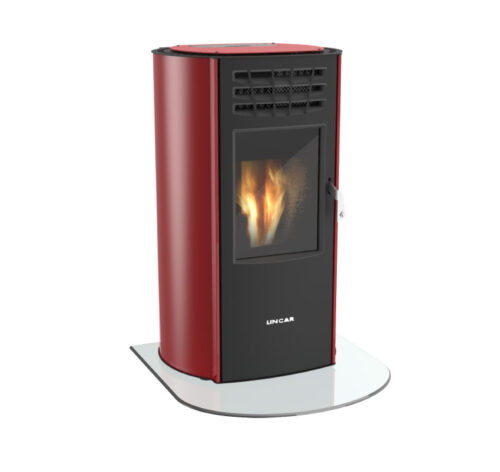

TERMOSTUFA A PELLET | PELLET THERMOSTOVE

CLOE

 TERMOSTUFA A PELLET | Pellet thermostove

Termostufa a pellet in ceramica, alta resa e basse, emissioni abbinate ad una nuova elettronica, già predisposta a dialogare con sistemi complessi, per integrare la termostufa in più ampie soluzioni di domotica. Dotazioni: cronotermostato. Vaso di espanzione, circolatore, jolly e valvola di sicurezza. Su richiesta con produzione di acqua calda.

Pellet thermostove, high yield and low emissions combined with new electronics, already set up to communicate with complex systems, to integrate the thermo stove into wider home automation solutions. Equipment: chronothermostat. Expansion vessel, circulator, jolly and safety valve. On request with hot water production.

      6,7 – 17,4 kW *

    MAX. 94,4 / MIN. 95,2 %

     Pellet 25 Kg

     (LxPxH):  515x620x1020 mm

     160 Kg

* Potenza chimica al focolare | Heat output



 0508
Rosso/Red
0000
Bianco/White



  Detrazione fiscale 50% per ristrutturazione edilizia (BONUS CASA)

Descrizione

Volumi di ambienti ben isolati | Volume of well-insulated environments
m3 430

Potenza Termica Focolare MIN- MAX. | Heat output
kW 6,7 – 17,4

Potenza Termica Utile MAX. (Pot. Nominale) | Nominal power output
kW 16,4

Potenza Utile MIN. /MAX. all’acqua | Water heating power min – max
kW  5,7- 14,8

Potenza Utile MIN -MAX. all’ambiente | Heating environment power min – max
kW 0,7 – 1,6

Potenza Termica Utile MIN. (Pot. Ridotta) | Nominal power output
kW 6,4

Rendimento a: Potenza MIN – Potenza MAX. | Efficency

MAX. 94,4 / MIN. 95,2 %

Capacità serbatoio pellet | Pellets storage capacity
kg 25

Consumo Combustibile | Fuel consumption
min. 1,30/max 3,50 kg/h

Ventilatori aria riscaldamento| Air heating fans
No

Scarico fumi | Exhaust fumes
Ø mm 80

Aspirazione aria | Air aspiration
Ø mm 42

Produzione Acqua Sanitaria | Hot Water production
NO

Capacità Caldaia | Water capacity boiler
23 L

Dimensioni | Dimensions
LxPxH mm 515x620x1020

Rivestimento | Cladding

Acciaio verniciato

Peso | Weight
kg 160

  • LIBRETTO TECNICO | Using instructions
  • CERTIFICATO AMBIENTALE | Environmental certificate
  • CERTIFICATO CE | CE certificate
  • DICHIARAZIONE DI CONFORMITÀ CONTO TERMICO | Declaration of conformity
  • ETICHETTA ENERGETICA | Energy Label
  • SCHEDA PRESTAZ. ENERGETICA
  • DICHIARAZIONE DI CONFORMITÀ (DOC) | Declaration of conformity
  • DICHIARAZIONE DI PRESTAZIONE (DOP) | Declaration of performance
  • CERTIFICAZIONE ARIAPULITA | AriaPulita certificate
  • LOGO ARIAPULITA

Informazioni aggiuntive

Colore

, ,

Combustibile

Pellet

Potenza

19 kW

Tipologia

Linea Hydro / Hydro Line
